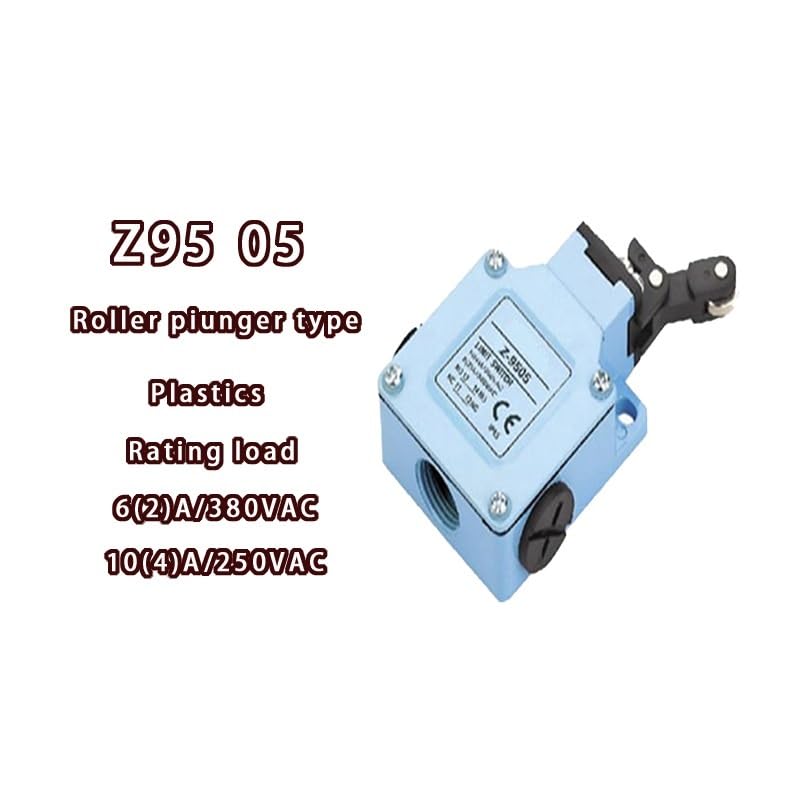

SYZ-95 01/02/03/04/05/06/07/08/09/10 Limit Switch(Z-9505)

SYZ-95 01/02/03/04/05/06/07/08/09/10 Limit SwitchWhat is a travel switch:Travel switch, position switch (also known as limit switch) is a commonly used small current master electrical appliance. The control circuit can be switched on or off by the contact action of the moving parts of the production machinery. Usually, this kind of switch is used to limit the position or stroke of the mechanical movement, so that the moving machinery according to a certain position or stroke automatically stop, reverse movement, variable speed movement or automatic round-trip movement.The characteristics of Z951. Strong Zinc cast outer shell, strong structure and high mechanical strength;2. Preventing oil and water ;3. Double way switch, double spring inner switch;4. Variety of levers;5. Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.Meaning of the picture (picture below) :==========Material : plasticSwitch Type : MICRO SWITCHModel Number : SYZ-95 01/02/03/04/05/06/07/08/09/10Item Type : SWITCHESCharacteristic : Sensor Roller type Limit SwitchElectrical life : 100,000 aboveMechanical life : 1000,000 aboveActuator : Roller piunger typeContact form : NO, NCColor : blueWiring : Easy wiring with full-open terminalsFeature : Double way switch; double spring inner switch

• SYZ-95 01/02/03/04/05/06/07/08/09/10 Limit Switch
